Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 331

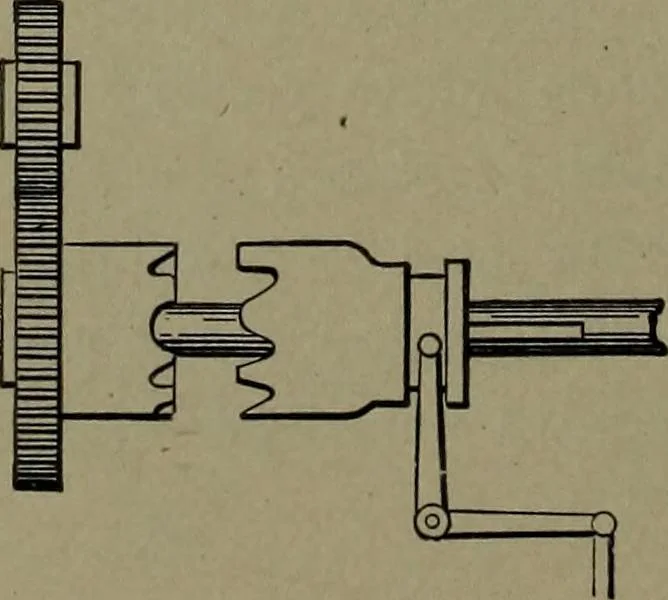

1305. V-GROOVED FACE CLUTCH.— A very effective clutch with teeth of smallangle. … 1306. CLUTCH AND GEAR.—The clutch slides on the feathered shaft, andthrows the gear into motion by the operatipnof the bell-crank lever and runner. MILL AND FACTORY APPLIANCES. 321 fl^ 1307. CONE CLUTCH.—Can be made atany angle greater than will cause the clutch tostick. 1308. MULTIPLE PLATE…
Mechanical movements
