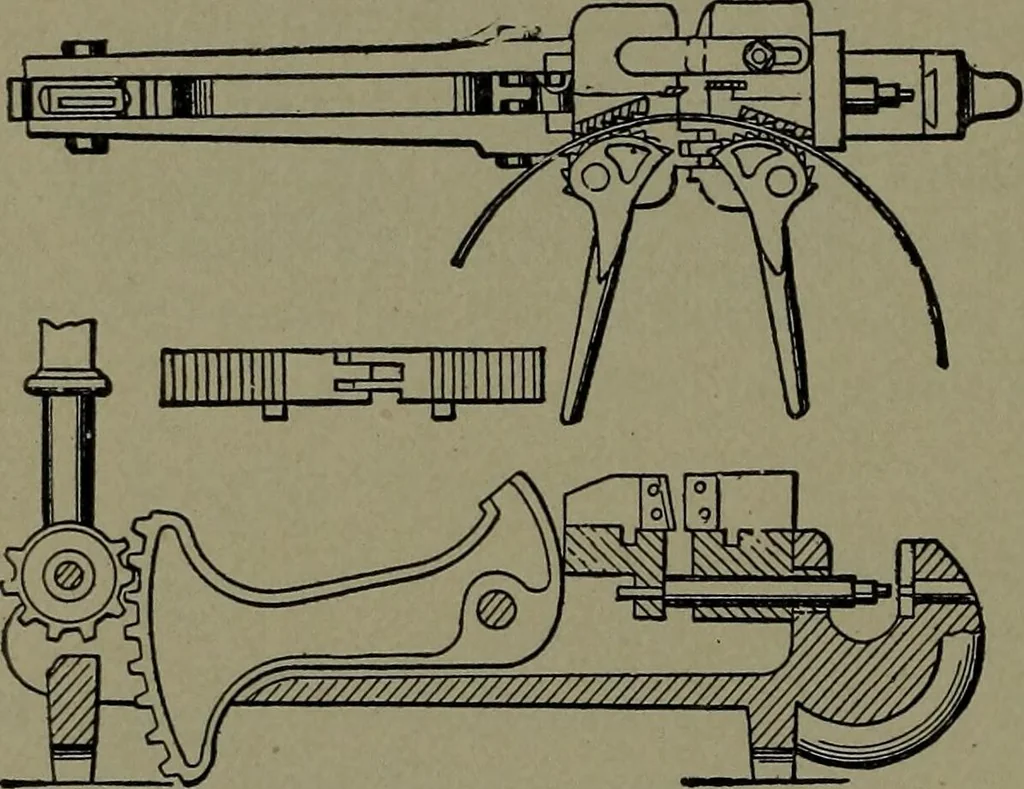

1368. TIRE SHRINKER.—A linkchain around the tire terminates in a fixedhook, and the hook on a powerful lever. 33- MILL AND FACTORY APPLIANCES. 1369. COMBINED TIRE UPSETTING AND PUNCHINGMACHINE.—The tire is made fast by the cam jaws, and the mov-able cam is set forwardby the sector cam leverand… … 1371. PLATE SAWING MACHINE.—A slow-running steel saw blade lubri-cated by dippingJj^^^VfX^ ■ in an oil box. The saw is automatical-ly fed to the plateby a worm gear,but has a quickreturn by the handwheel.
