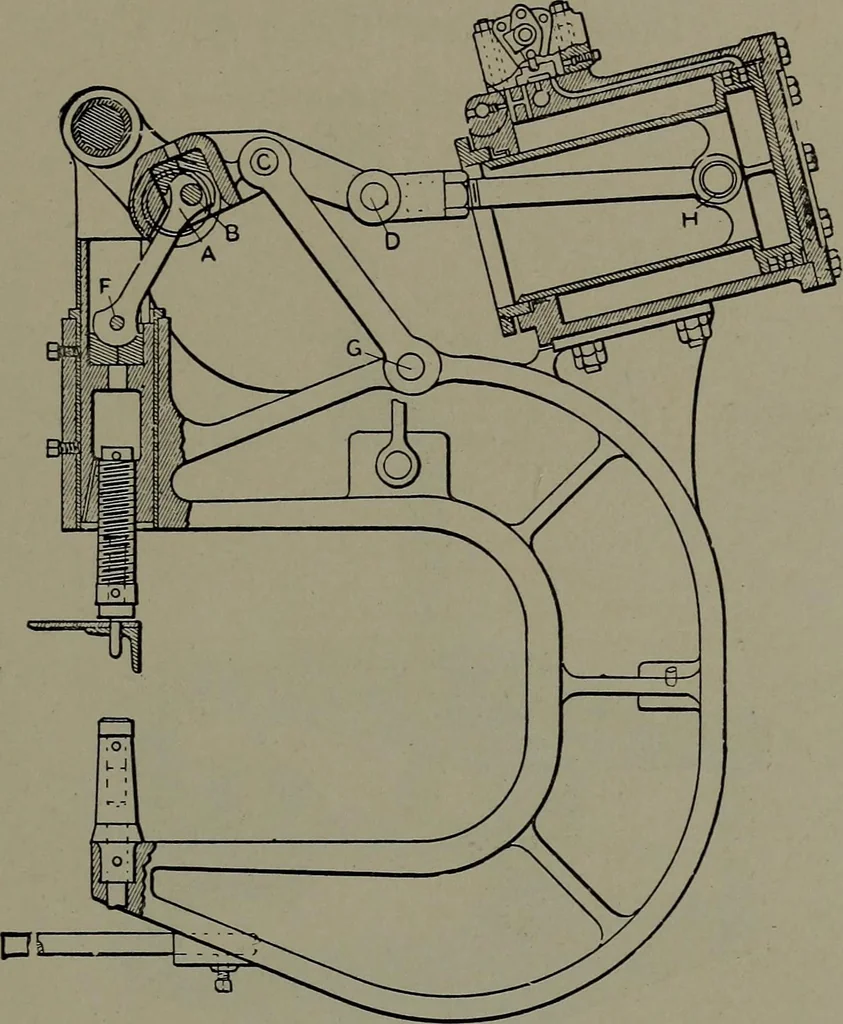

Fig. 165.—Development of the Mechanism. ALTERNATE DESIGNS 303 … Fig. 166. 165. Assignment.— p = (50,000 to 200,000) lb. T = (lOi to 66) in. Maximum movement of the die {0 + N) in. Air pressure lb. per sq. in. Assign Plunger Travel, 0 + NApproximate other dimensions to table A B C D D E F M N 0 P 9 12 1 n 9 18 26 8f 3i h 12 First calculate and obtain the sizes…
