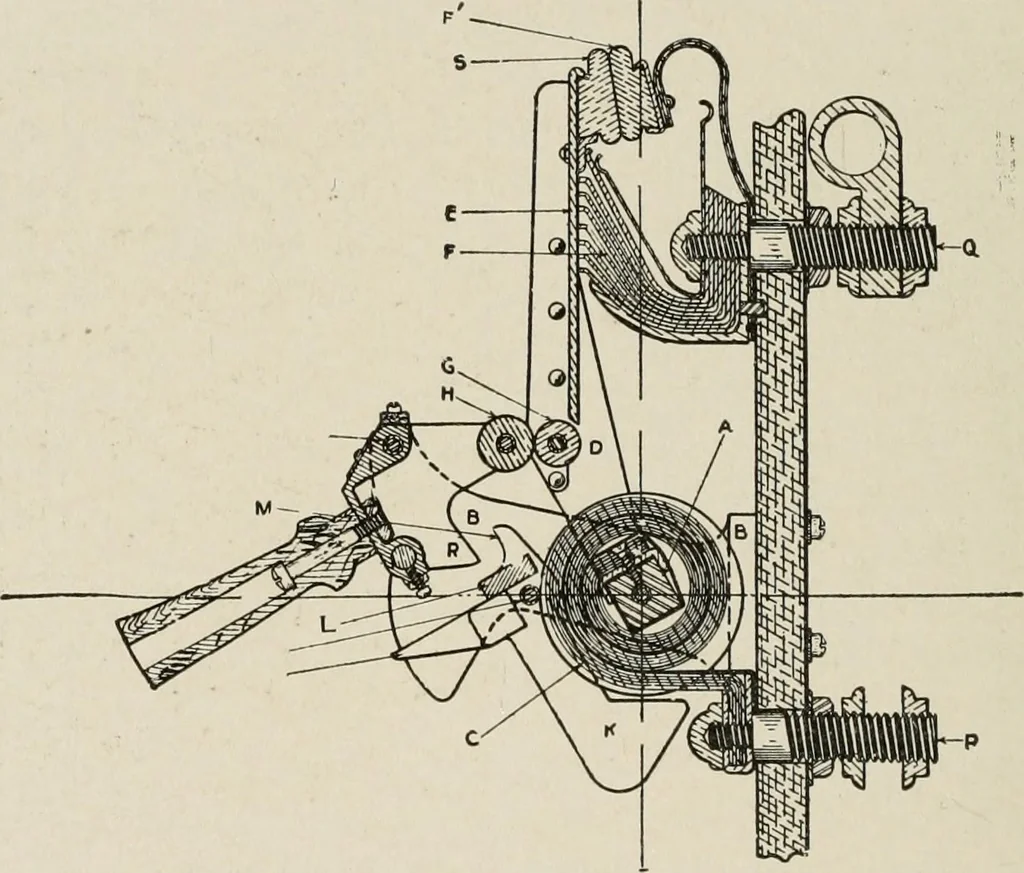

threaded nuts n n. On accountof the large current to be carried, extra large contact surfaces areprovided between switch blades and clips, as seen in the figure. Damage to switch-blades and clips, due to arcing, is reducedto a minimum by providing carbon blocks which make a connectionin parallel… … Fig. 379. Half Section of Over-Load Type of Circuit Breaker—Closed Circuit Breakers. In Fig. 379 there is shown in elevation andhalf section a plain overload type of circuit breaker for either direct-or alternating-current circuits up to 600 volts. Fig. 380 is a generalview of the same single pole…
