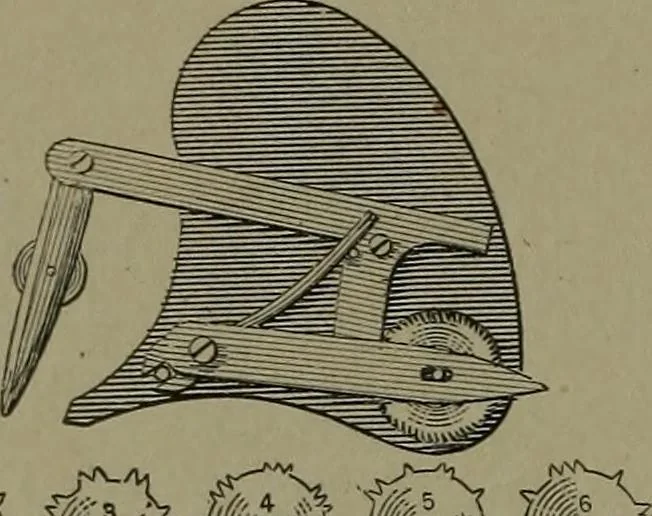

370 DRAUGHTING DEVICES. lever and pin follows the spacing of the teeth on the wheels. 1531/L DOTTING INSTRU-MENT.—One of the toothedwheels for the kind of dotting re-quired is placed on the pin and heldby the spring clip. The wheelshould roll on the edge of the Tsquare and the frame against…
