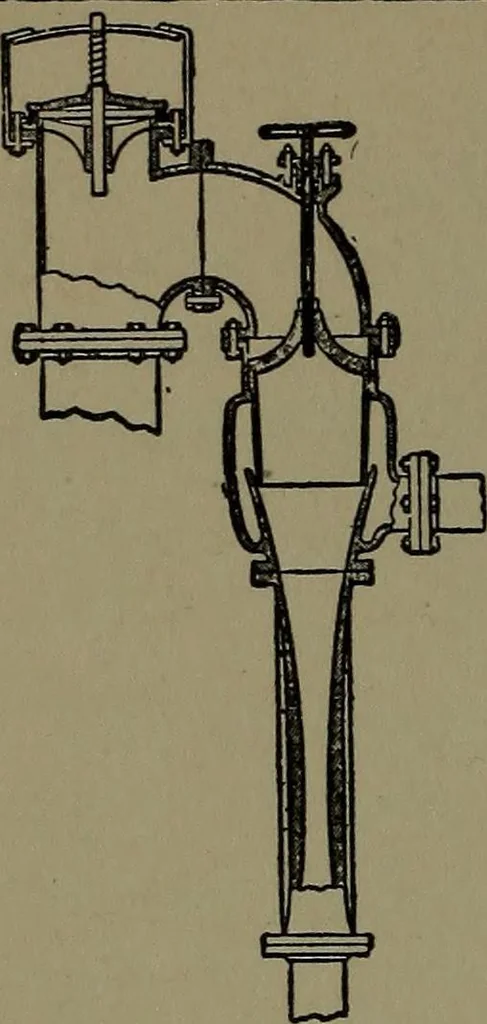

397. EJECTOR CONDENSER, with auto-matic three-way valve. By the operation of twovalve discs on a single stem the exhaust steam ispassed to the atmosphere, or is condensed by themultiple nozzle water jet. Korting model. no STEAM APPLIANCES. … 398. EXHAUST JET CONDENSER.^ The exhaust steam passes through a cyUndri-cal nozzle and meets a thin annular stream ofwater at the mouth of a funnel-shaped nozzle.The converging sheet of water condenses thesteam, and prevents back pressure by itsvelocity through the narrow end of the nozzle.
