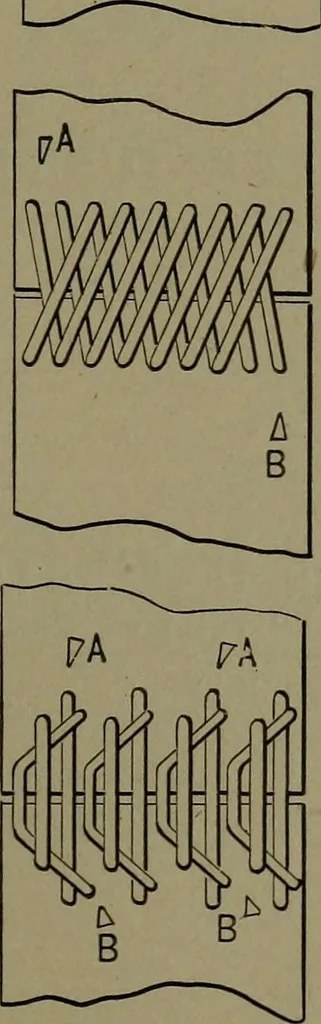

75-76. BELT LACING, fornarrow belt. Commencing at a, aon the inside of belt 75, drawingthe lacing to its centre ; rove theends each way, ending at e, e, 76. pA … 77. BELT LACING.—Com-mencing at A and ending at B.Dotted lines on outside. 78. OVER-AND-OVER LAC-ING.—Commencing at A andending at B. Diagonal on outside. 79. INTERLOCKING BELTLACING, from A to B, onceacross. A good style for smallpulleys. 80. CROSS LACING, for alight belt. 81. OVER-AND-OVER…
