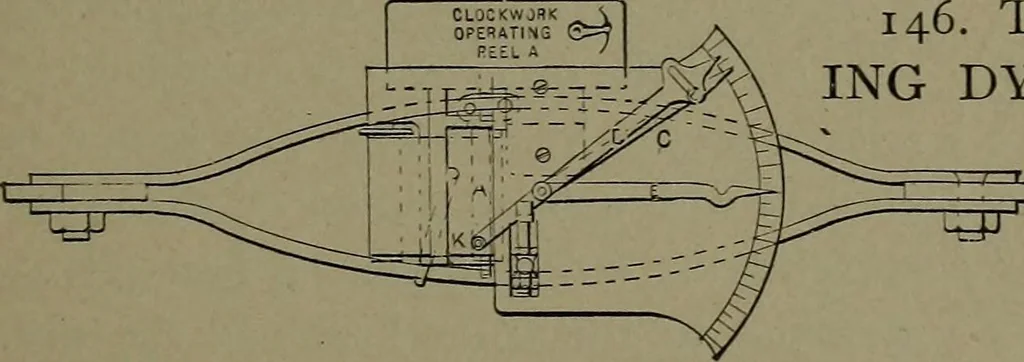

bare clamped to the shaft. A set of levers on a rockhaft transmits the strain on the springs to an in-dex and dial indicating the horse-power per 100revolutions of the shaft. 146. TRACTION RECORD-ING DYNAMOMETER.—The draft-pull compressesthe elliptic-shapedsprings, moving theindex hand D,…
