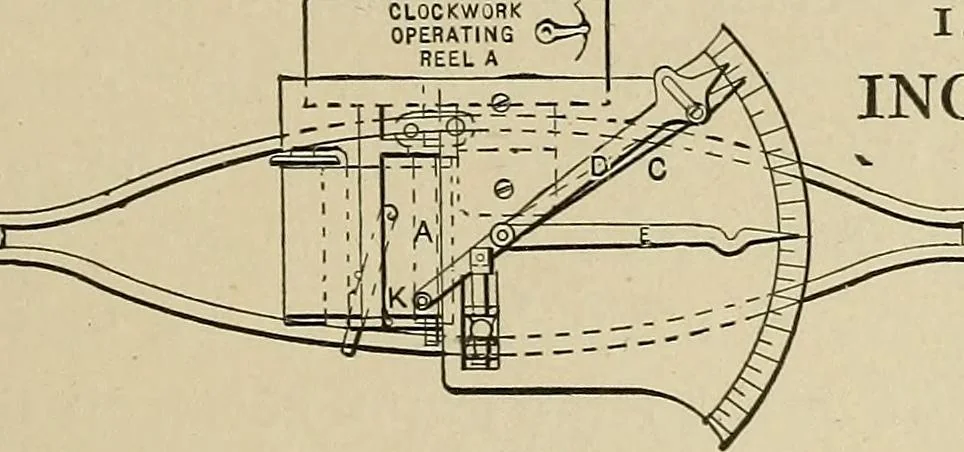

An illustration from Mechanical movements, powers, devices and appliances;, 1903, leaf 58 — f levers on a rockhaft transmits the strain on the springs to an in-dex and dial indicating the horse-power per 100revolutions of the shaft. CLOCKWQUK OPERATING BEEL A 146. TRACTION RECORD-ING DYNAMOMETER.—The _ draft-pull compressesi;ji the elliptic-shapedsprings, moving theindex hand D,…
