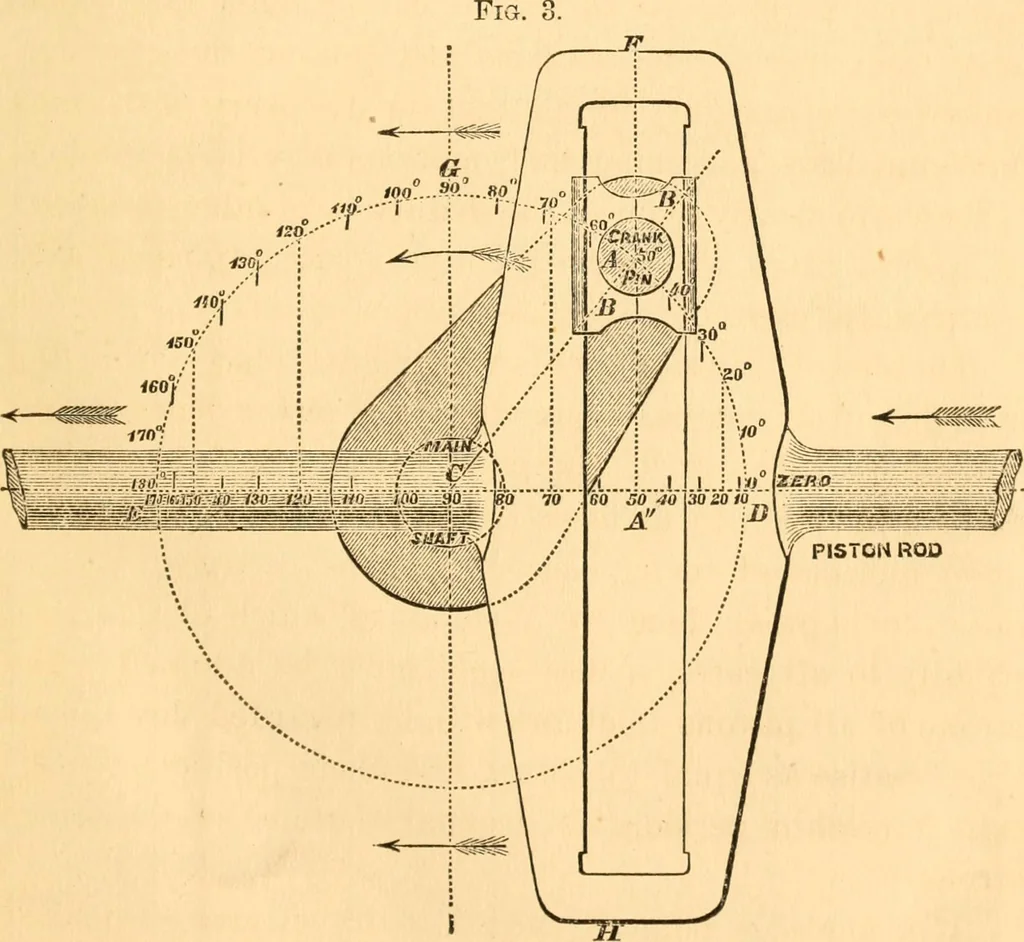

s called degrees (360°), eachdegree into 60 minutes and each minute into 60 seconds. While the piston of an engine performs a single stroke,the crank-pin makes a semi-revolution (180°) about thecentre of the main shaft, each position of the former conse-quently corresponds with some angular… … 28 PISTON, CKANK AND VALVE MOTIONS. Since the slotted cross-head shown in Fig. 3 is theonly form of connection between the crank-pin and piston,in which the piston moves from one extremity of the stroketo the other at the same speed as the crank-pin—measuredon the stroke line—it will answer our…
