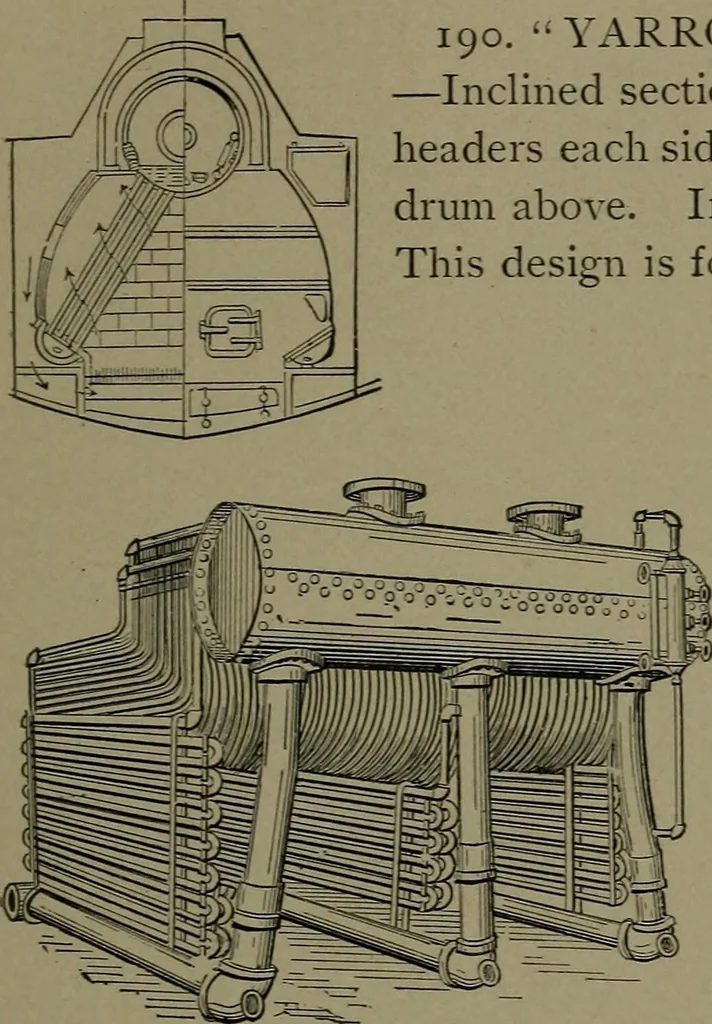

189. SEE WATER TUBE BOILER.— A series of short straight tubes connecting a hori-zontal steam drum with a rectangular water base on each side of the furnace,of boiler. Return tube at back STEAM POWER. 61 … 190. YARROW WATER TUBE BOILER.—Inclined sections of straight tubes from water-headers each side of the lire grate to a large steamdrmn above. Iron casing lined with fire tile.This design is for a marine boiler. 191. BOYERSTUBE BOILER. WATER FurnaceCoils over the fire are connected fromcirculating…
