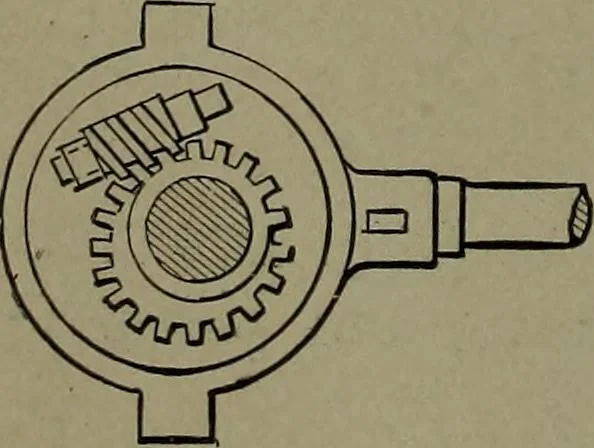

270. JOYS HYDRAULIC SHIFTINGECCENTRIC— The centre block is keyed tothe shaft; pistons on each side of the blockwork in cylinders in the eccentric. Oil is pump-ed to one or the other piston through holes inthe crank shaft and piston, for reversal of theengine. … 271. SHIFTING ECCENTRIC—The ec-centric is movable on worm gear and itssleeve, which is keyed to the shaft. The tan-gent worm is pivoted in lugs on the eccentric
