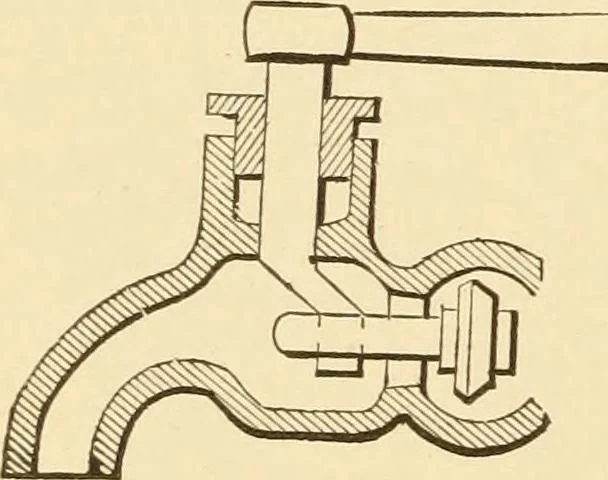

589. UNIVERSAL PIPE JOINT.—The flanges ^ are faced at 450 to the line of the pipe, with athrough bolt at right angles to the faces of the flanges.The joint may be made at any angle up to 90^=. ^^^,^^^^^^^■x^^,^^^^ 590. TOGGLE CLIP PIPE JOINT.—A J quick connecting joint for hose. … } 591. BIBB, with crank-moved valve opening against the pressure.
