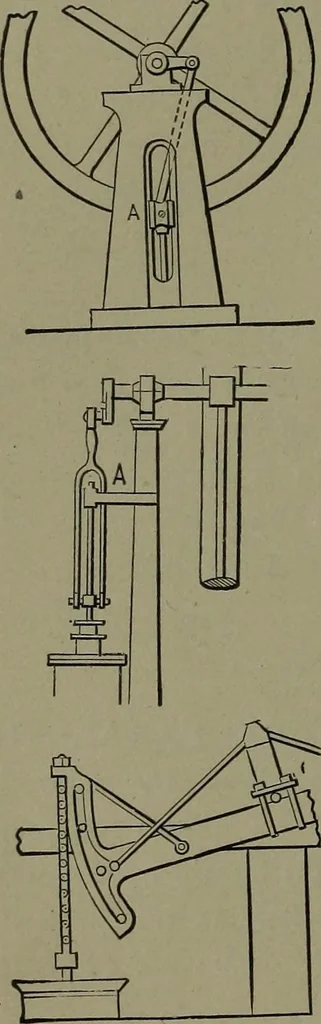

289. CROSS-HEAD SLIDE athwart theshaft. An obsolete design for a vert:.al enginein a side-wheel steamer. ^^^^^^^^^ … 290. PARALLEL MOTION by guide bars inthe frame of a vertical engine, with connectingpiston rod and crank. Cross-head sliding in aslot in the frame. Old, 291. PARALLEL MOTION to piston rodand cross-head by prolonging the piston rodthrough a fixed guide and connecting to thecrank with a forked rod. A…
