Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 242

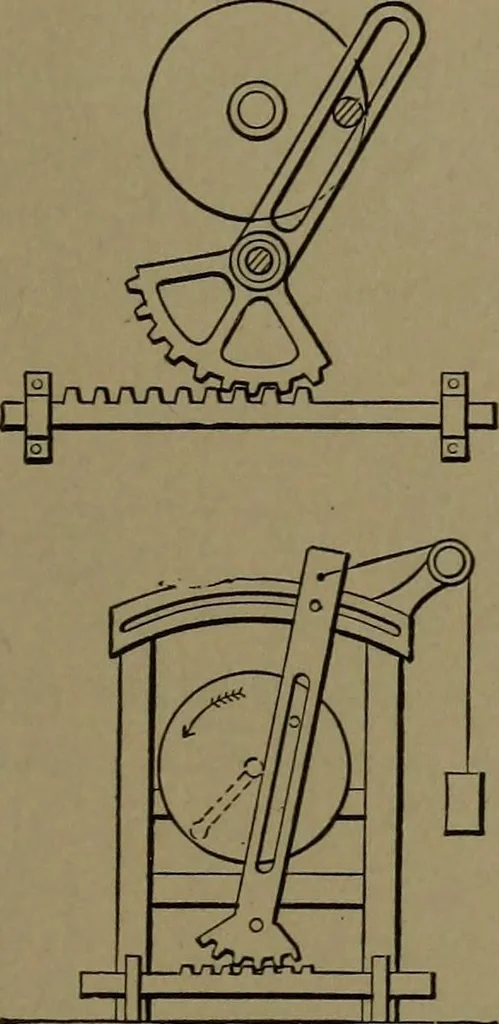

r: 894. QUICK BACK MOTION given to arack slide by a sector gear and slotted arm;operated by a pin in a revolving face plate. 895. ALTERNATE RECTILINEAR MO-TION from a swinging lever with sector andrack. The lever has a quick return motion,operated by a wrist pin on a face plate, and[j free from…
Mechanical movements
