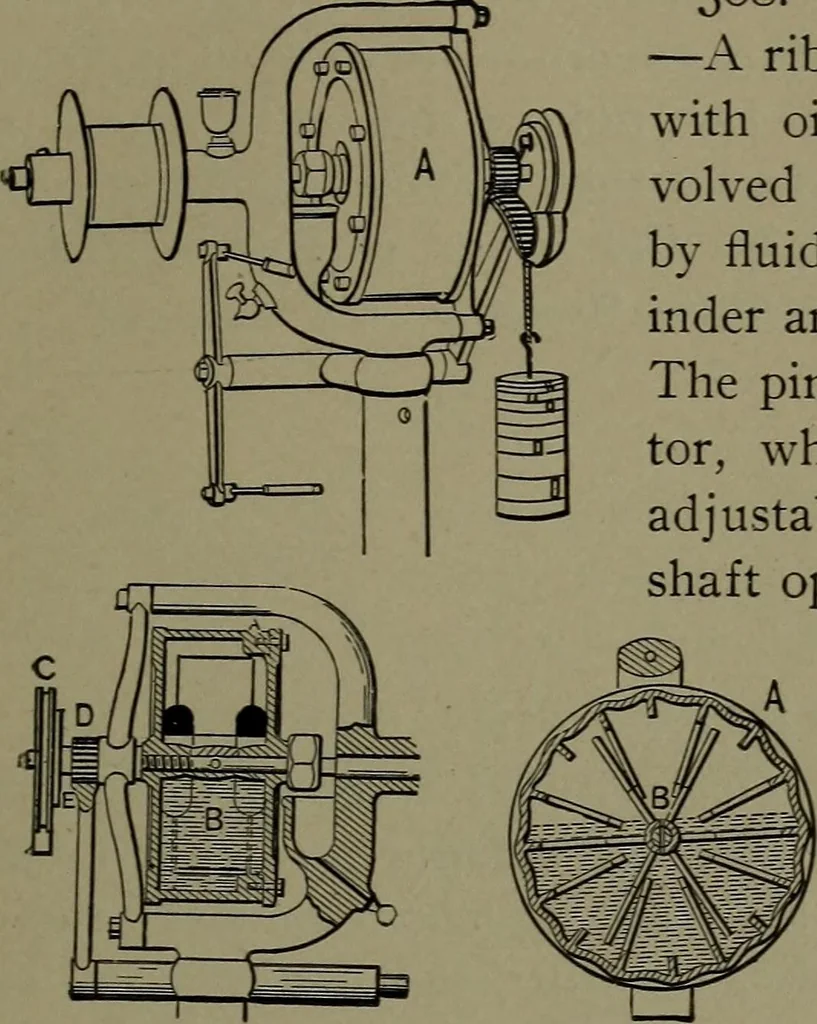

307. DIFFERENTIAL GOVERNOR.— The larger pulley, A, is driven by a belt fromthe motive power, winding up the larger weightwhich is offset by the revolution of the smallei^^H^^ pulley and the fan wheel, which is regulated bythe difference in the weights which balancesthe frictional resistance of the… … 308. HUNTOON GOVERNOR.—A ribbed cylinder, ,A, is partly filledwith oil. A paddle wheel, B, is re-volved by the pulley and shaft whichby fluid friction moves the ribbed cyl-inder and pinion in the same direction.The pinion meshes in the toothed sec-tor, which is counterbalanced by anadjustable…
