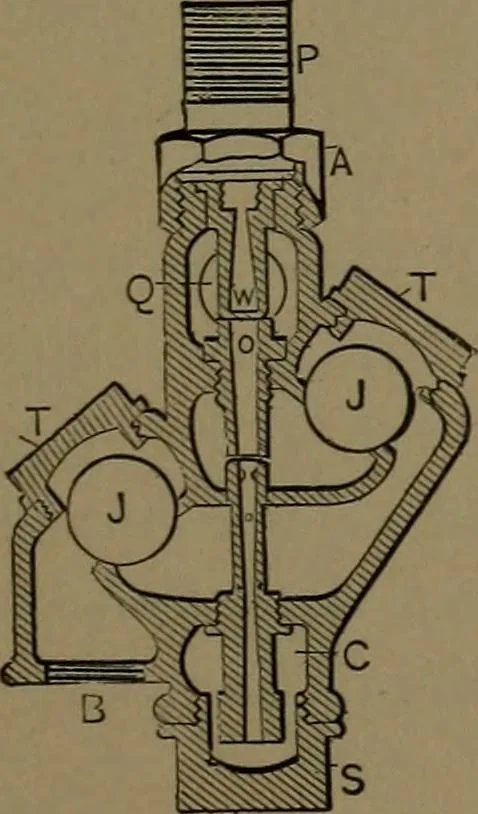

iZK KORTING INJECTOR.— A double-tube automaticmovement by which the dif-ference in area of the valvediscs at A and B allows thebalance lever to open thelifting nozzle first and, bya further movement of thehandle, opens the force noz-zle B. The overflow is self-adjusting for both nozzles. 389.… … 390. BALL-VALVE INJECTOR,in action. J, J, ball valves.P, steam inlet.W, inverted nozzle.Q, suction inlet. B, overflow. C, side outlet to boiler.S, cap. automatic io8 STEAM APPLIANCES.
