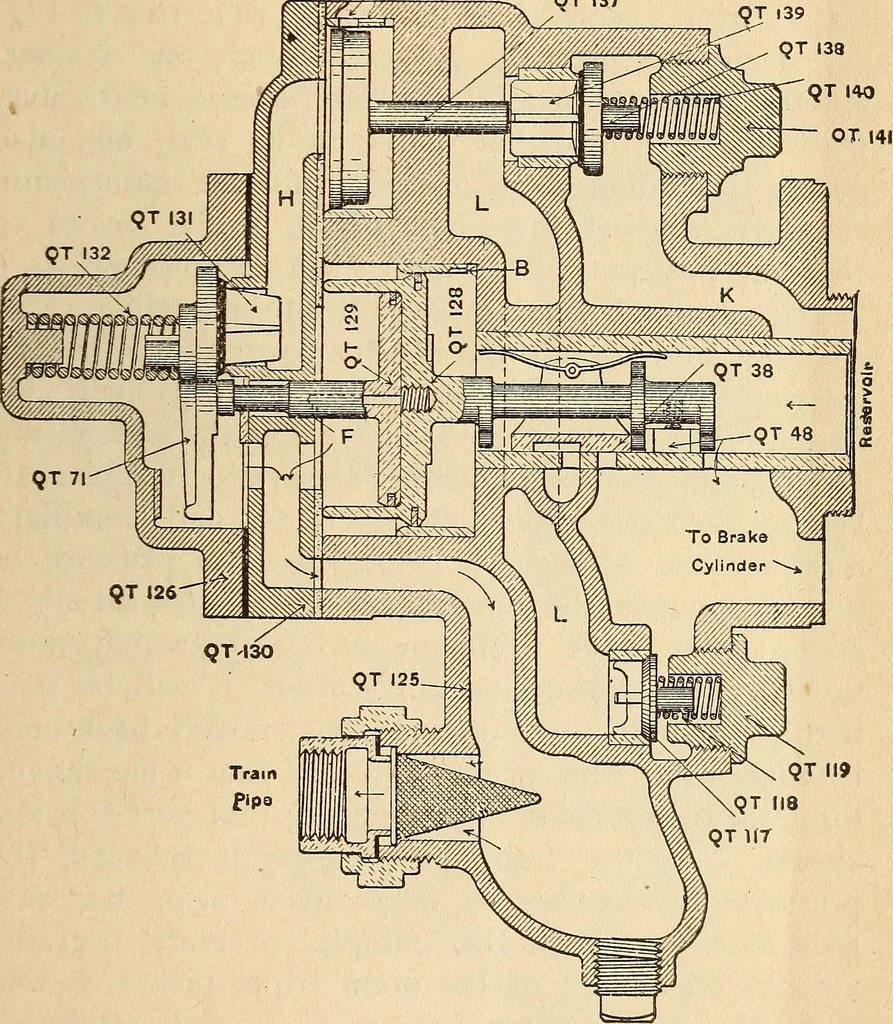

Figure 257New York Quick Actiox Triple Valve. Release Positioxating slide valve, 48; the vent piston, 129; the rubber-seated vent valve, 131, and spring, 132, the emergencypiston, 147, with rubber-seated quick-action valve 139,and spring, 140. AUTOMATIC AIR BRAKES 607 Now return to brake cylinder… … Figure 258New York Quick Action Triple Valve SERVICE application POSITION 129, has a port, F, which leads through its center intochamber G of the main triple piston. This allowstrainpipe pressure to get between the pistons, thus 6o8 LOCOMOTIVE- ENGINEERING forming a cushion that takes the place of…
