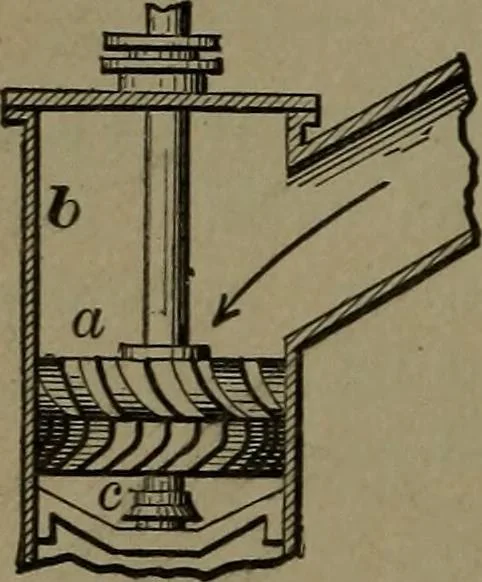

486. JONVAL TURBINK — The upper^ inclined blades are fixed. The lower inverseblades form the wheel. … 487. JONVAL TURBINE.—^, The case ;a^ the chute or directrix, fixed; c^ the wheelbuckets. The curved buckets are set slightlytangent and curve downward in parabolic orcycloidal form. Water discharges downward.Efficiency from eighty to eighty-five per cent.
