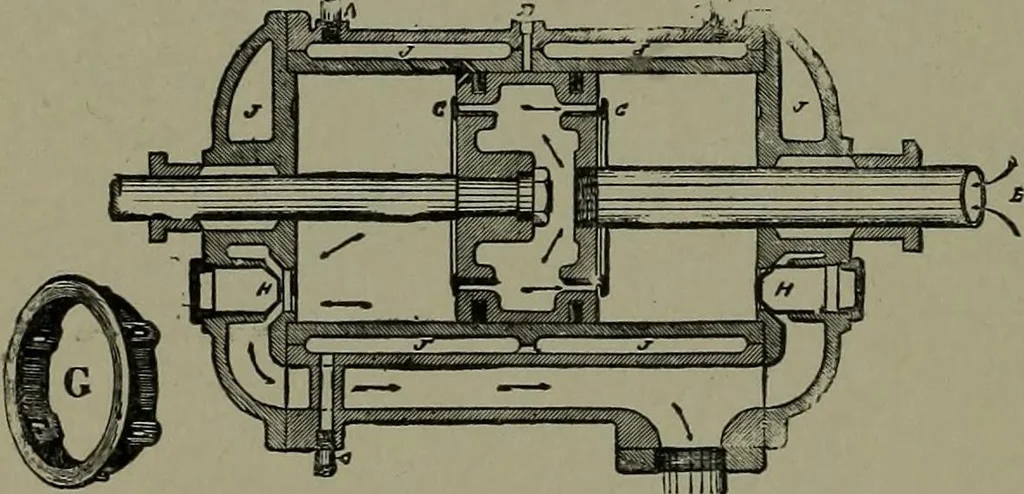

648. TOGGLE-JOINT DUPLEX AIRCOMPRESSOR.—The crank moves thecommon joint of the long arms in a hori-zontal direction on a slide. The straighten-ing of the toggle greatly increases the powerN of the pistons during the terminal part of^ their stroke, when the air pressure is greatest. … 649. AIR COMPRES-SOR CYLINDER, PIS-TON AND VALVES.— Pattern of the Ingersoll,Sergeant Drill Co. Takesits air through a hollow pis-ton rod at E to the interiorof the piston. The annular valves, G, G, open and close by theirmomentum. H, H, discharge valves closed by springs; J, J, waterjacket. AIR…
