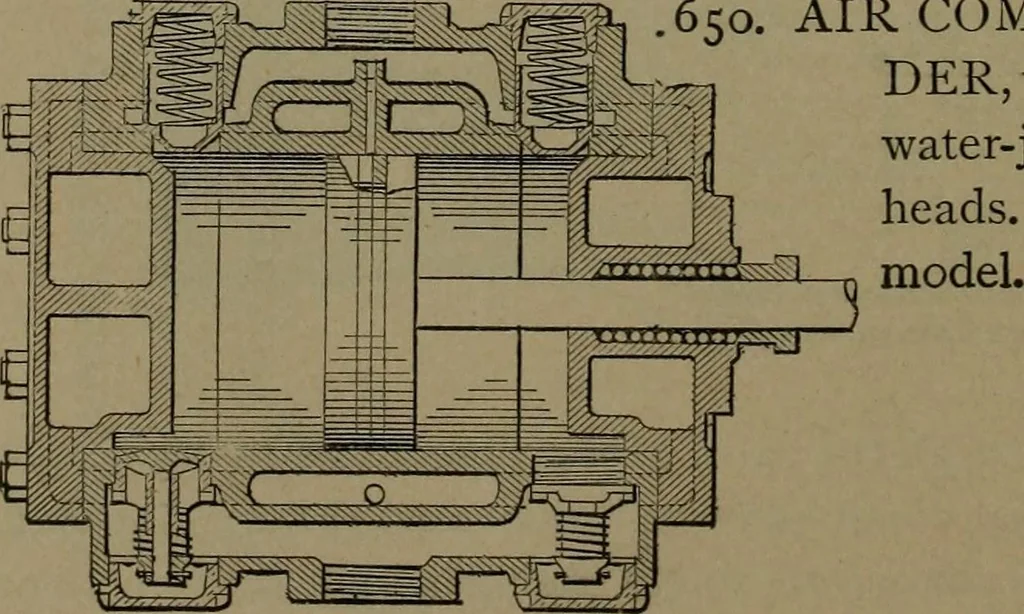

649. AIR COMPRES-SOR CYLINDER, PIS-TON AND VALVES.— Pattern of the Ingersoll,Sergeant Drill Co. Takesits air through a hollow pis-ton rod at E to the interiorof the pistouo The annular valves, G, G, open and close by theirmomentum. H, H, discharge valves closed by springs; J, J, waterjacket. … .650. AIR COMPRESSING CYLIN- t,^-} DER, with vertical lift valves, water-jacketed cylinder and heads. Ingersoll-Sergeant AIR POWER APPLIANCES. 175
