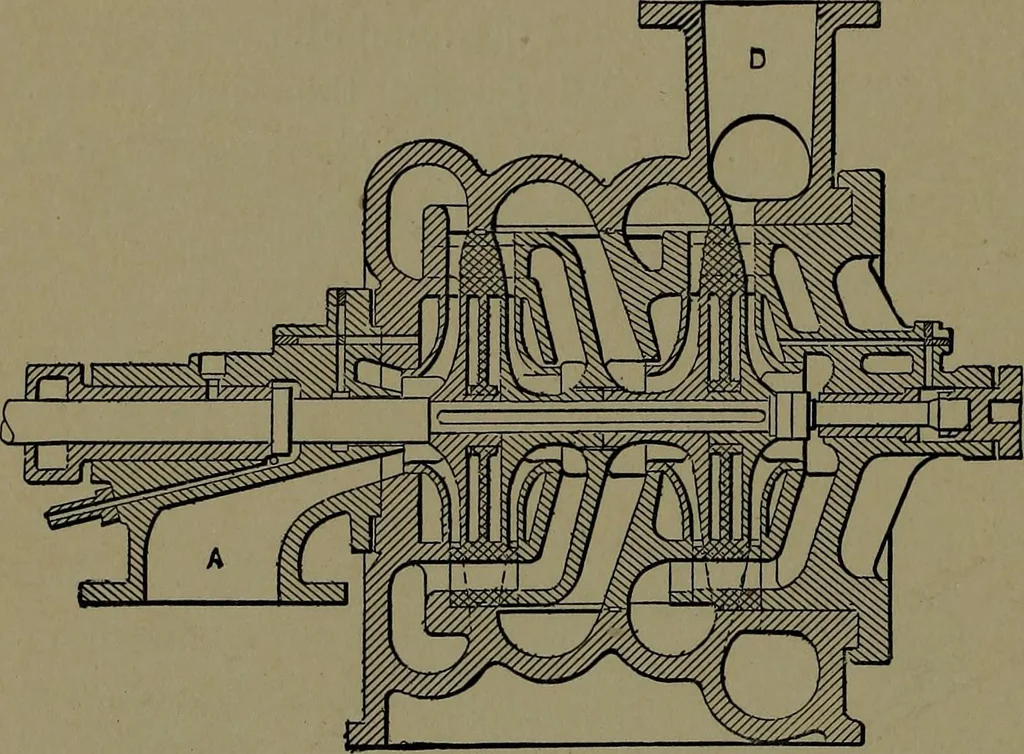

HYDRAUI.IC POWER AND DEVICES. 611^. FOUR STAGE CENTRIFUGAL PUMP.—The fourvolute wheels are fixed to the shaft. The water enters to the wheel A, isW^ thrown out and returnsthrough theopening in thestation-ary partitionto the centerof the nextwheel, and soon to the dis-charge cham-ber D at theright.…
