Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 213

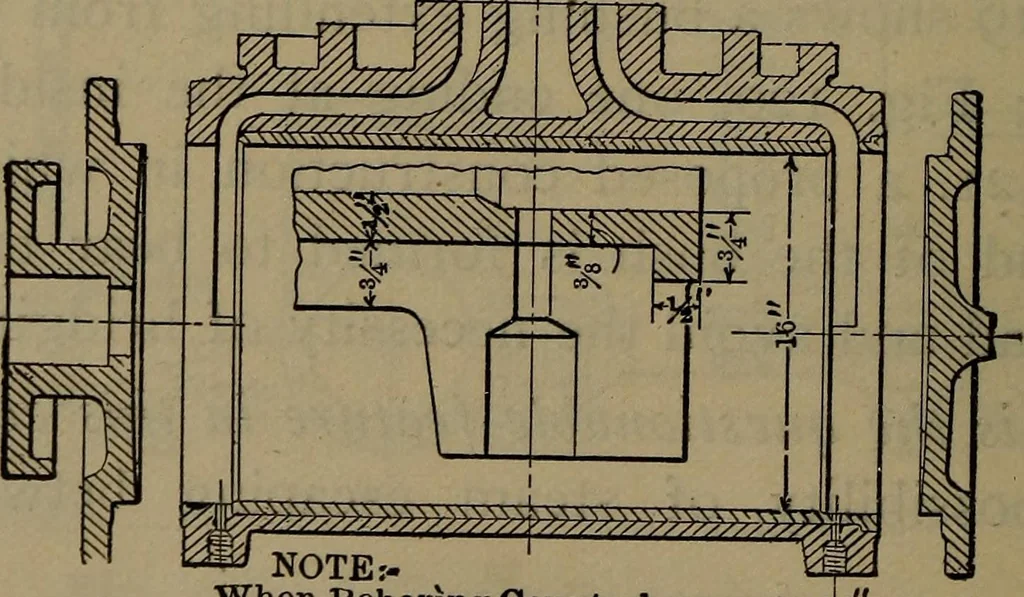

Fig. 120. Cylinder Bushing. … NOTE:-When Reboring Counterbore only ^larger in diam, than Cylinder Bore Fig. 121. Cylinder Bushing. THE CYLINDERS. 207 A. To prevent the piston from wearing a shoulder at theend of its stroke. Q, What would be the disadvantage of such a shoulder? A. If the piston position with reference to the…
