Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 186

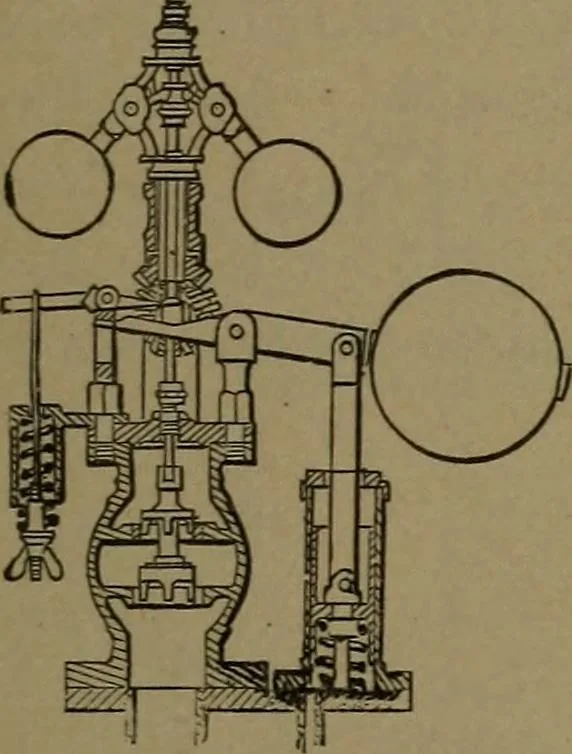

DER, with vertical lift valves, water-jacketed cylinder and heads. Ingersoll-Sergeant AIR POWER APPLIANCES. 175 … 651. AIR COMPRESSOR GOVERNOR.— Controlling the speed by the ordinary action ofthe governor balls, and also reducing the com-pressor to minimum speed when the air pressurebecomes excessive. The ball and lever at theright are lifted by the air pressure in the smallpiston, and force the valve rod and…
Mechanical movements
