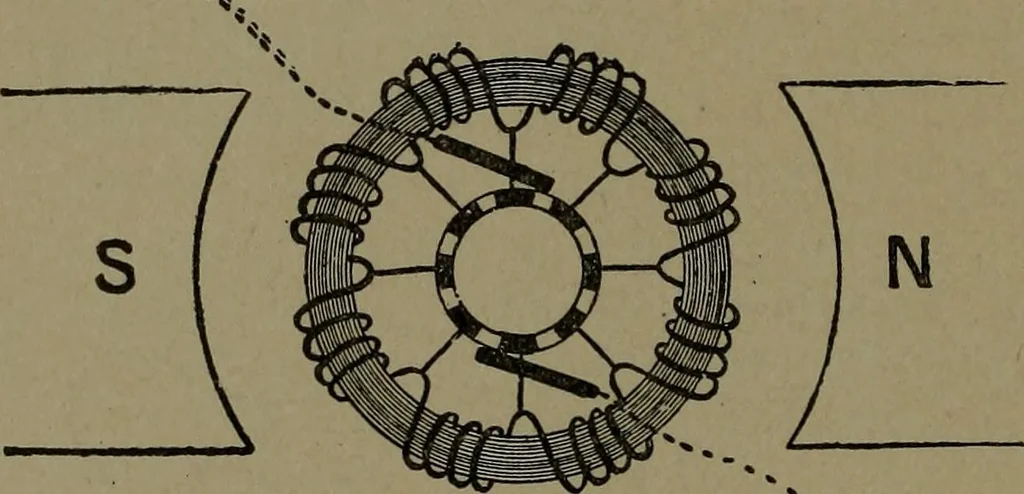

An illustration from Mechanical movements, powers and devices, 1907, leaf 201 — 707. FOUR-POLE RING ARMATURE,showing intermediate connections with thecommutator bars from a continuous windingor closed coil. … 708. RING ARMATURE— Method of continuouswinding and sectionalconnections with thecommutator. The dot-ted lincS are the circuitconnection with thebrushes.
