Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 218

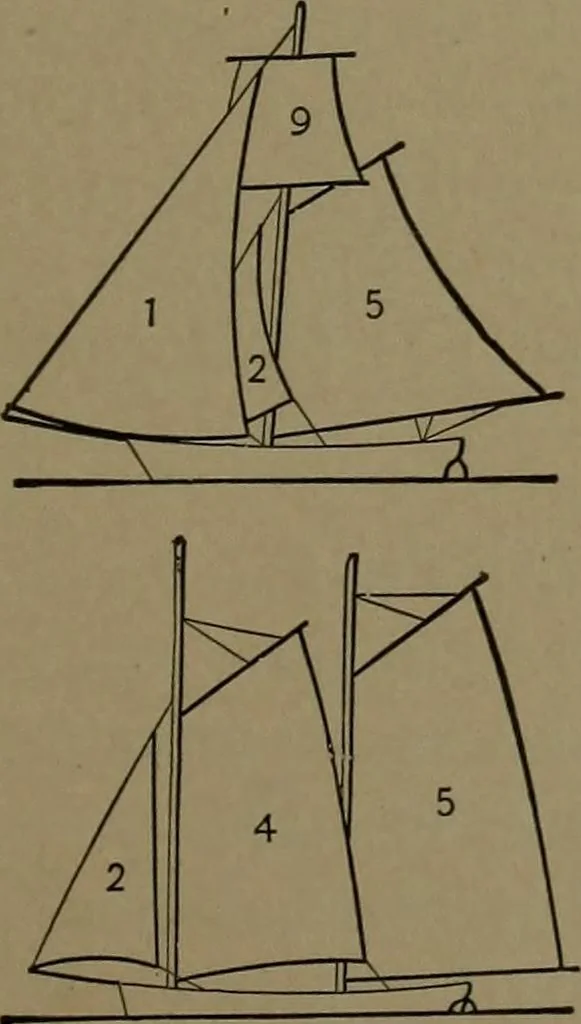

sternwith a leg-of-mutton sail, extended by a boom.I, flying-jib; 2, jib; 5, mainsail; 8, lugsail. SLOOP YAWL.—A foremast, schooner-rig, ofsheet and jib, with a lugsail and mast at thestern. Lugsail extended by a boom. 2I jib;5, mainsail; 8, jigger. 774. JIB-TOPSAIL SLOOP.—A mainsail, two jibs and… … 775. THE CUTTER.—A mainsail, 5 ; jib,2 ; flying-jib, i, and topsail, 9, are the mainfeatures of a cutter-rig. 776. SCHOONER RIG.—Fore-and mainsail bent to the mast, boom and gaff. Jib stayedto bowsprit. 2, jib; 4, foresail; 5, mainsail 208 NAVIGATION AND ROADS.
Mechanical movements
