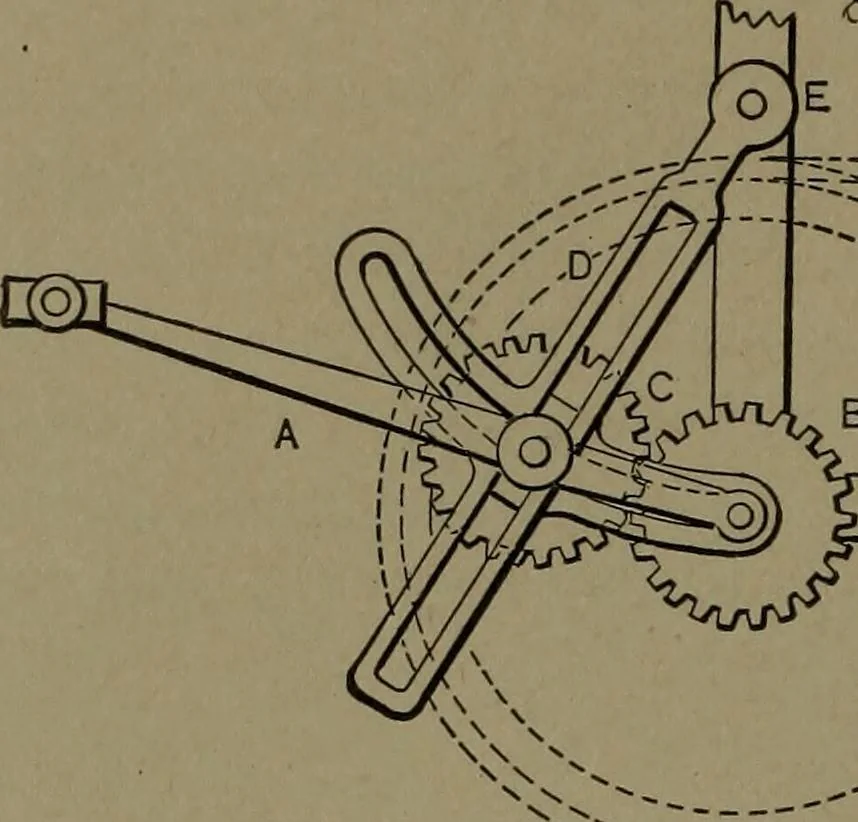

867. BICYCLE CRANK.—A devicefor shortening the up-crank stroke. Theeccentrics are fixed to the frame. Thecranks and eccentric straps revolve onball bearings, carrying by link connectionthe secondary crank shaft and sprocketwheel. 868. Horizontal plan. 869. SWINGING BALL-BEARINGBICYCLE… … \-^ h-W- // /til / / / 870. A. F.HAVENS PLANETARYCRANK GEAR, adapted^V-~----_-_-_-r for bicycles for varying pro-^^NN^ portion of motion. The gear B is fast on the sprocket-B ^ \\ wheel shaft. Gear C is fast2 to a block that slides in thelongitudinal slot of the crossD. The curved arms of thecross…
