Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 231

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 231

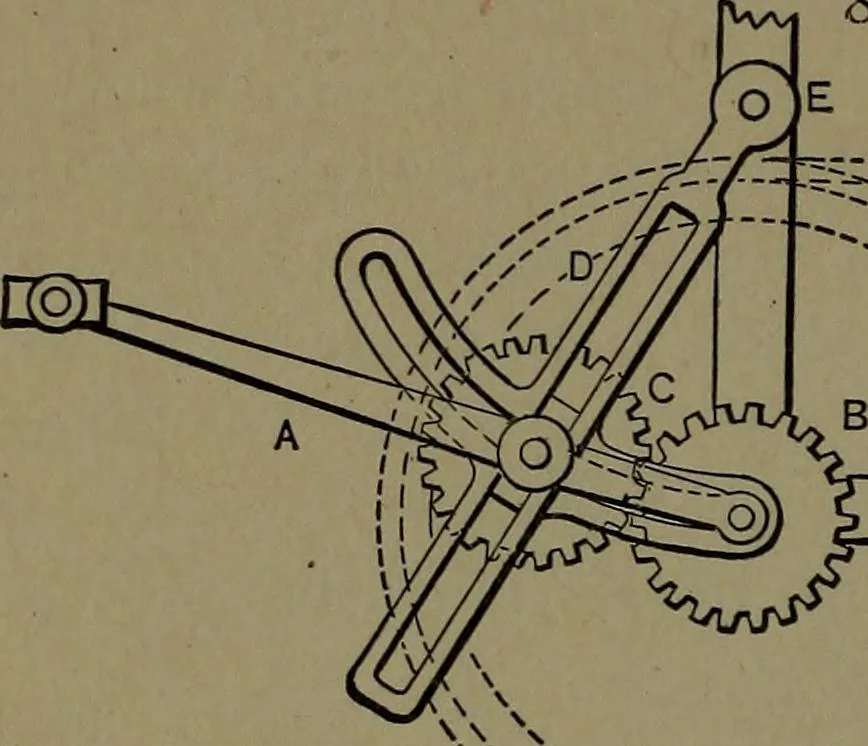

869. SWINGING BALL-BEARINGBICYCLE PEDAL.—Carries the feet closeto the ground. 224 NAVIGATION AND ROADS. … 870. A. FoHAVENS PLANETARYE CRANK GEAR, adapted 3.5iv-~---_--_-r for bicycles for varying pro-portion of motion. The gearB is fast on the sprocket-wheel shaft. Gear C is fast I I I 11 f-44- I I II / // 2 to a block that slides in thelongitudinal slot of the crossD. The curved arms of thecross are…
