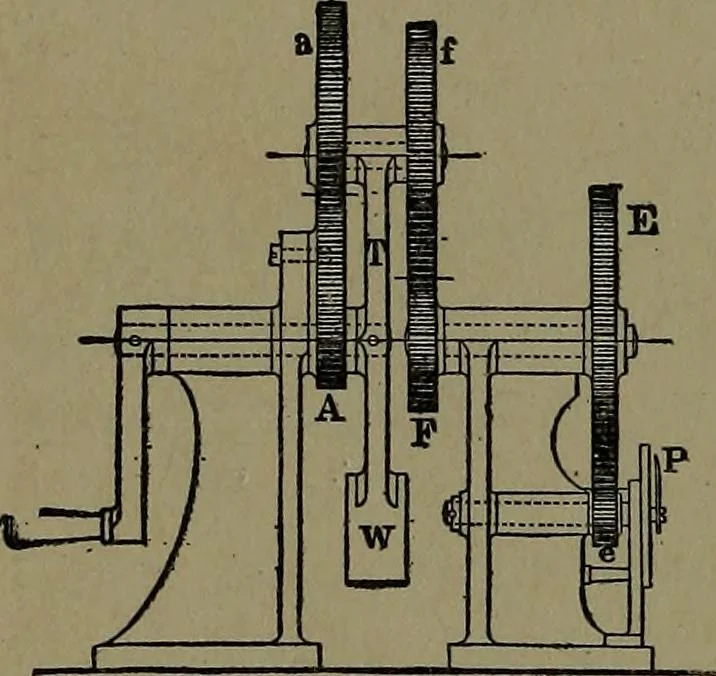

the opposite or reverse wheel, and vice versa. 982. ECCENTRIC GEAR.—Irregularinverse motion from elliptic speed gear.The balanced arm T is fixed to the crankshaft and turns with it. The gear A is el-liptical, as is also the gear a. Gear A isfixed to the frame with one of its centrescoincident with… … •983. SUN AND PLANET CRANK MOTION,used by James Watt on the steam engine. Gearcentres are held by connecting arm. B is fixed toconnecting rod, and does not revolve on its owncentre, but moves around the axis of the fly-wheelA with a slightly oscillating motion. The wheel A revolves twice onits axis…
