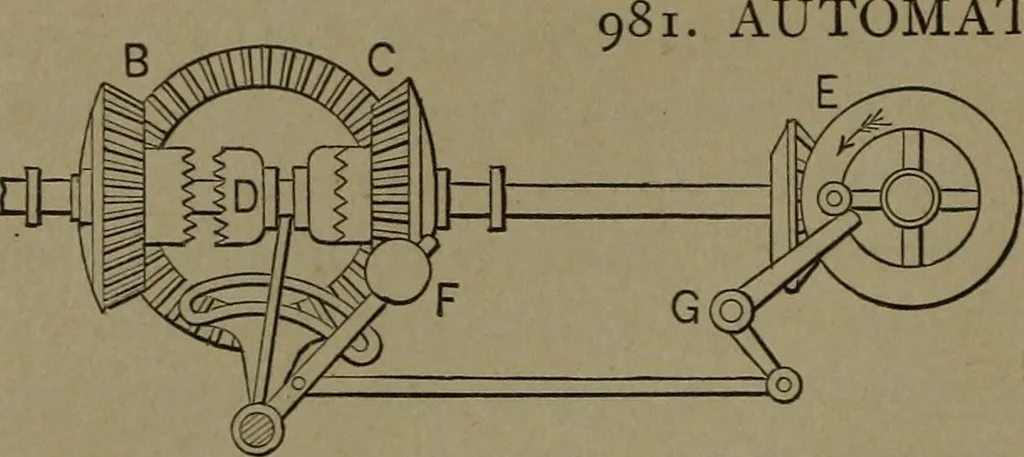

248 GEARING. … AUTOMATIC CLUTCH MOTION FOR REVERSING.-^The bevel wheels B, C arethe drivers in contrary di-rection; D is a doubleclutch on the shaft feather.The revolution of the pin on bevpl wheel E moves the weighted ball F through the action ofthe bell-crank lever and connecting rod until the ball is past the…
