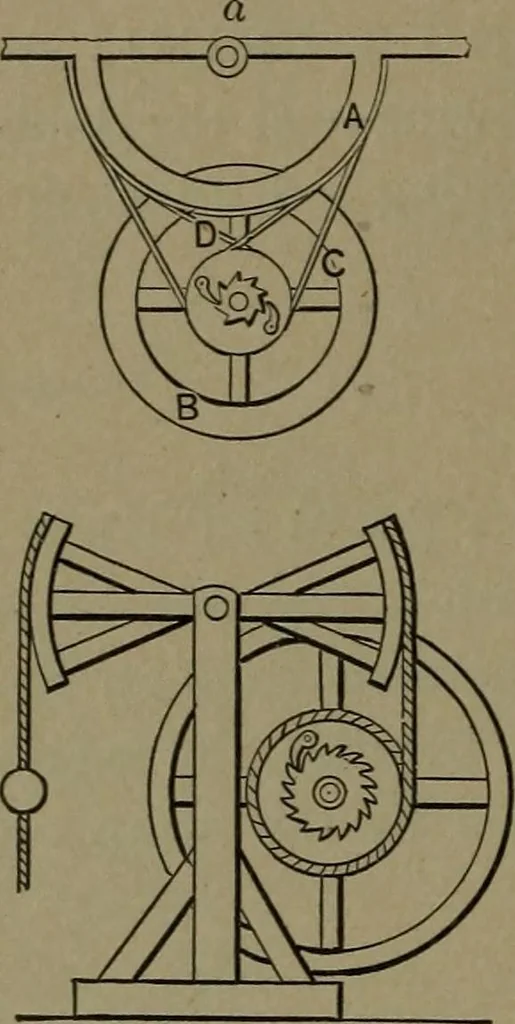

machines. 1006. INTERMITTENT ROTARY MOTION of a wheel by vibrating levers and A 1 ■ pawls. B, pin-tooth wheel. A, vibrating lever. 1007. INTERMITTENT CIRCULAR MOTION from a reciprocating rod. Motion varied in the ratchetwheel A by the number of teeth swept over bv thepawl B. 1008. PAWL LIFT.—By… … 1009. OSCILLATING MOTION into rotarymotion by a straight and crossed band runningon two ratchet pulleys, the ratchets of which arefast on the shaft. Each oscillation of the sectorlever gives a forward motion to the shaft. loio. CONTINUOUS ROTARY MOTION by stop ratchet and oscillating beam.…
