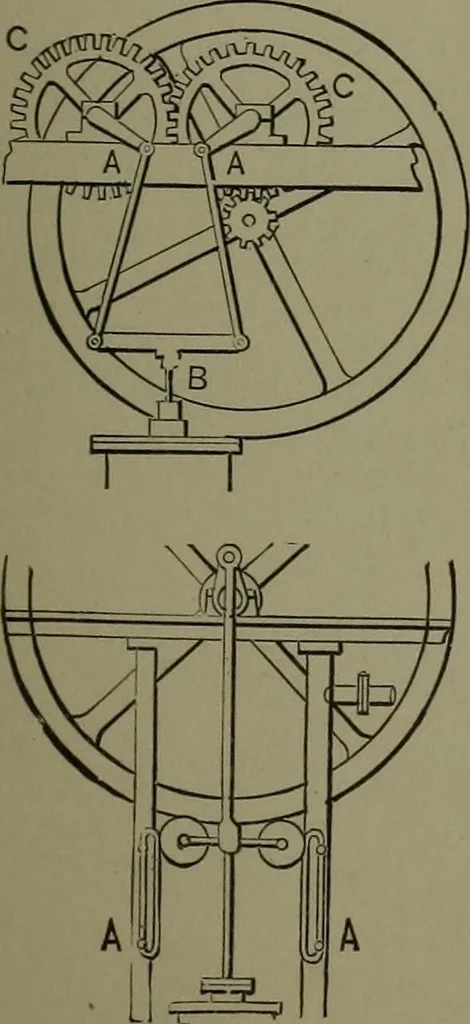

site to the middle ofstroke. 285. PARALLEL MOTION for an engine.The radius bars are of equal lengths from thecentre line of the engine and sliding pivot of thelong bar. Both fixed and sliding pivots at rightangles with the centre line when at half stroke. 286. PARALLEL MOTION of a pistonrod by… … 287. «CARTVVRIGHTS PARALLELMOTION for steam engines by gearedwheels. A free cross-head on piston rod andconnected to two cranks on shafts with equalspur gears from which power is transmittedthrough a third spur wheel. Very old (77^7). 288. PARALLEL MOTION by a cross-head and rollers running against…
