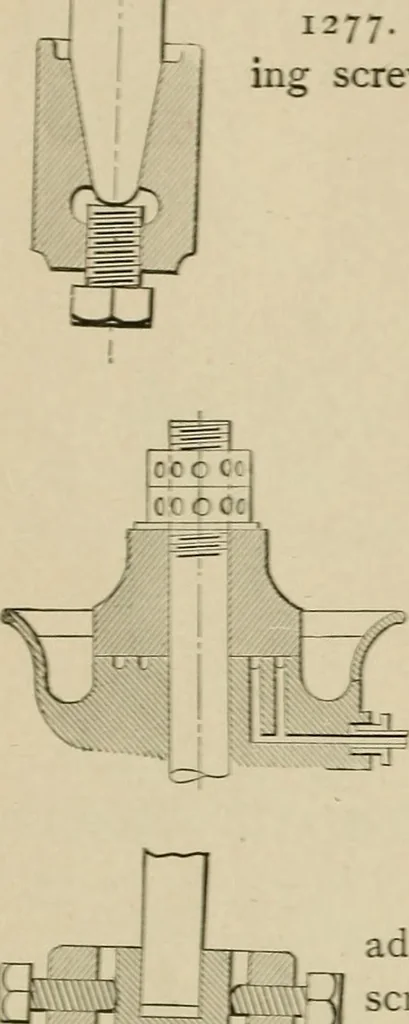

1273. SCREW TRAVERSINGBALL BEARING. The balls returningby a side passage. Ball grooves enlargedfor full strength of shaft. ■ 1274. HANGING SHAFT on ball bearings. 1275. SUSPENDED SHAFT on ball bearings. 1276. CURVED STEP BEARING, with oUreservoir. 3i6 MILL AND FACTORY APPLIANCES. … 1277. CONICAL PIVOT BEARING and adjust-ing screw. 1278. LUBRICATION OF A HANGINGBEARING by hydraulic pressure. Oil isforced into the grooves of the bearing throughthe small holes and discharges into the cuparound the outside. 1279. VERTICAL SHAFT STEP.—Madeadjustable by a movable bearing held by…
