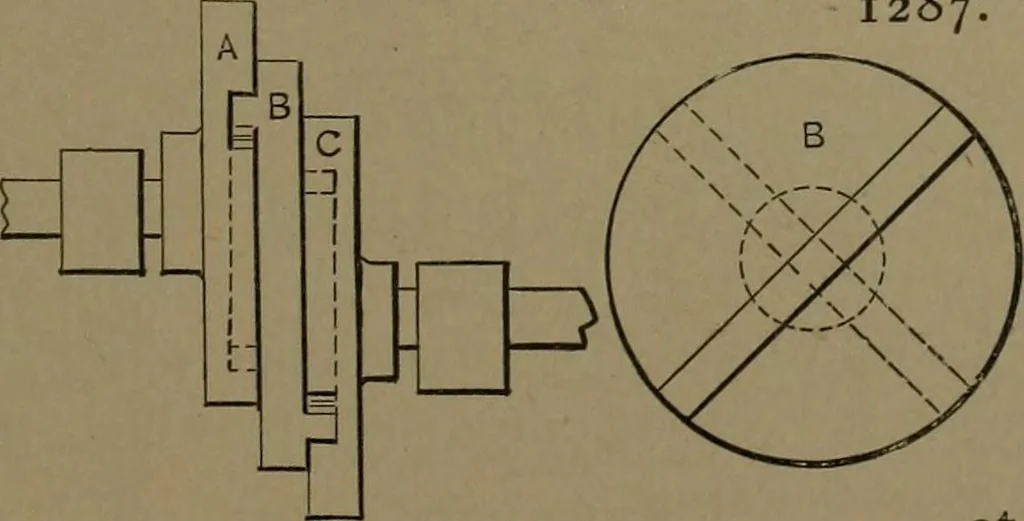

1285. SPHERICAL STEP BEARING.—Two semi-spheres, rolling on a horizontal shaft, supporta vertical shaft having a concave spherical end.The semi-spheres roll in opposite directions in oil,and by the cross direction of the bearing surfacespreserve a perfect contact. 1286. ANGLE COUPLING for shafts.… … OLDHAM COUPLING for shafts slightly eccentricin alignment. The double-splined disc B runs freeagainst the grooved faceplates A, C. 1288. Disc showing groovesat right angles, front and back. 3i8 MILL AND FACTORY APPLIANCES. LEATHER LINK
Mechanical movements
