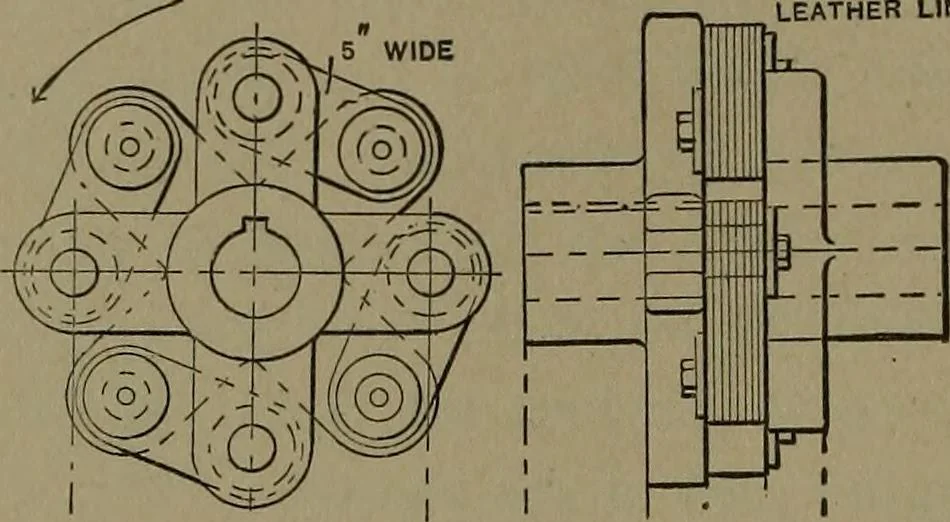

OLDHAM COUPLING for shafts slightly eccentricin alignment. The double-splined disc B runs freeagainst the grooved faceplates A, C. 1288. Disc showing groovesat right angles, front and back. 3i8 MILL AND FACTORY APPLIANCES. LEATHER LINK … 1289. FLEXIBLE LINKCOUPLING.—The end of eachshaft is fitted with a four-armedhub. A series of leather links isinserted between the arms of onehub and those of the other hub,and secured with stud bolts. 1290. Side view. 1291. FLEXIBLE SHAFT COUPLING.—A ball and socketshaft ends with a slot in the…
