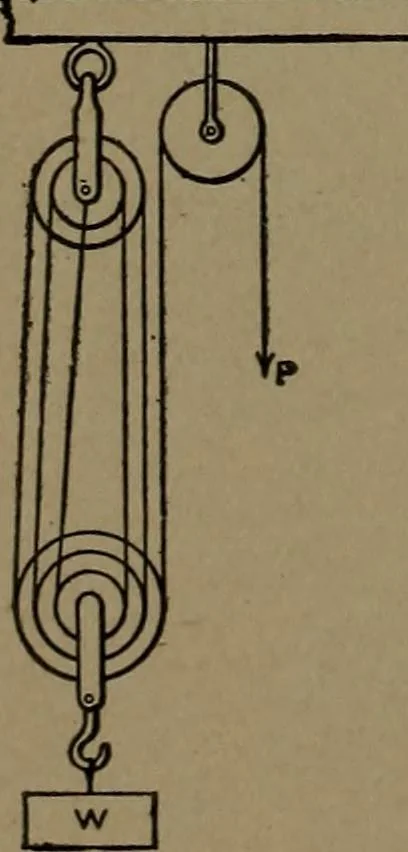

37. Four and three sheave blocks, with end of ropefixed to top block. Four sheave block fixed, threesheave block movable. P = W~6 W = P X 6. … F 38. Roving of a three and two sheave pair ofblocks, with a draw block fixed above. P = W —. W = P X 6.o THE MECHANICAL POWERS. 25
