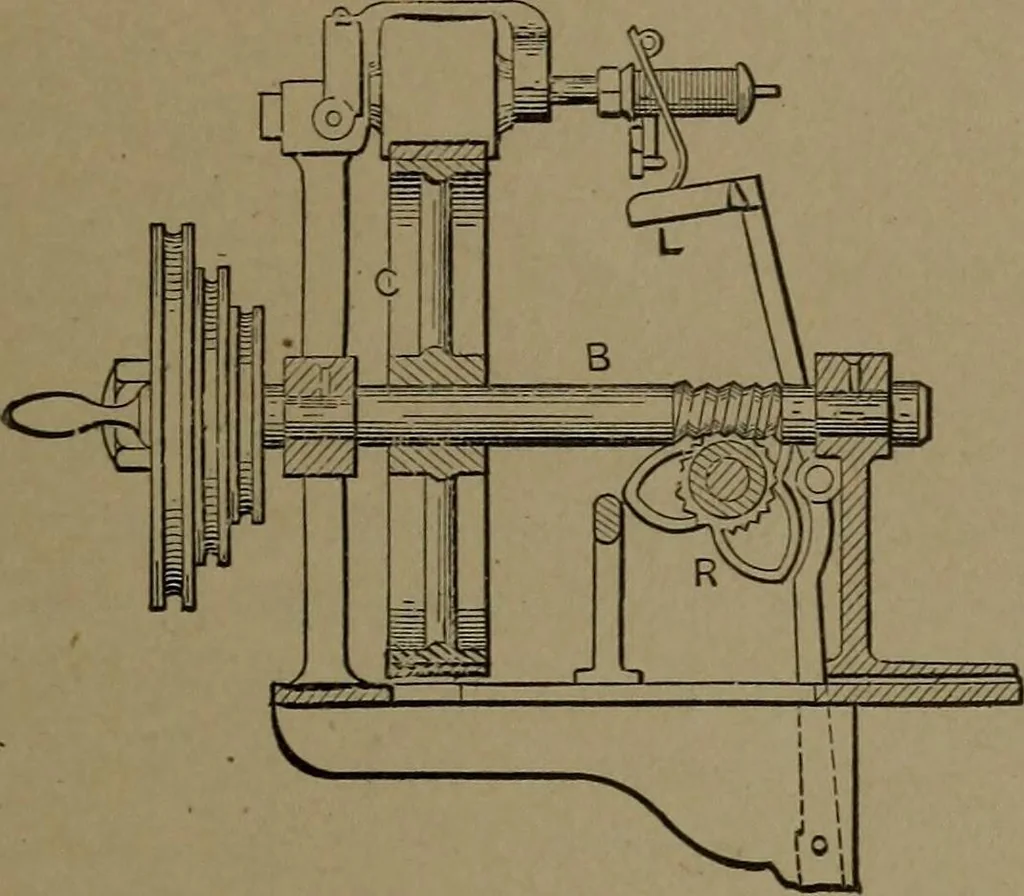

1443^. MODERN COT-TON GIN.— D, nest of saws. E, saw grate betweeneach saw to holdback the seed. A, feeder trough andhopper. J, cylinder brush strip-ping the cotton fibrefrom the saw. F, adjusting lever. K, sliding mote board. MlZh AND FACTORY xlTPLIAXCCS. 347 … 1443c. SPOOL WIXD-ING MACHINE.—A worm screw B and geardrives a set of cams R ona cross shaft and oscillatesa lever and thread guide toand fro. The spool spindledriven by friction gear fromthe shaft B.
