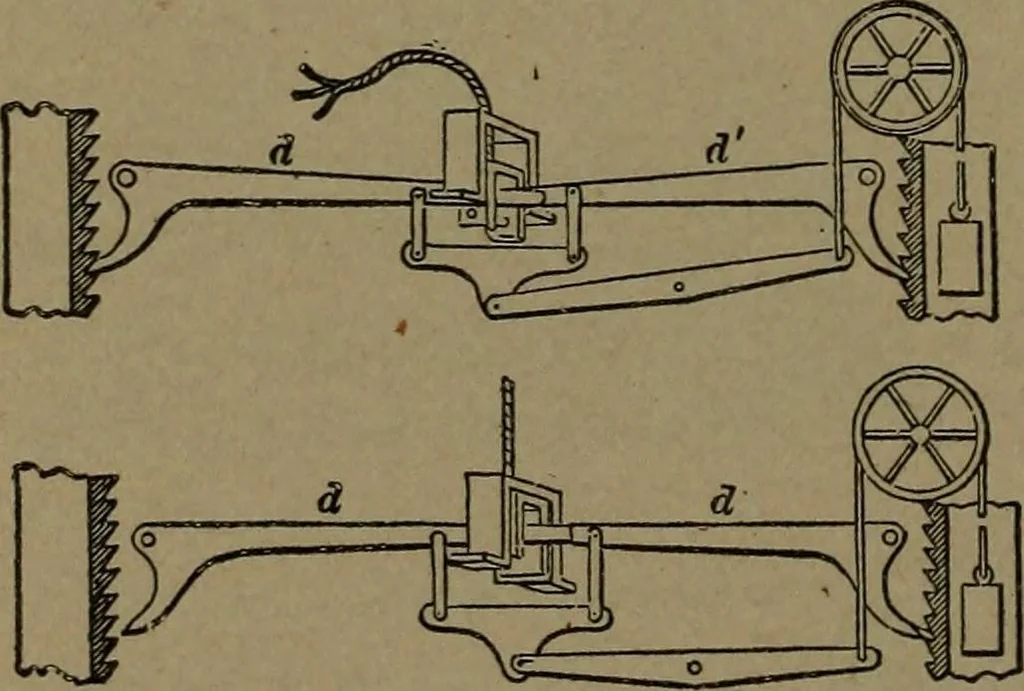

GEAR.^When the cage is lifted the pivoted armpulls the pawl clear of the rack. A break-age of the rope lets go the pawl arm, andthe spring throws the pawl into the rack. W 1566. SAFETY CATCH FOR ELEVATORS—A lever pawlpivoted to each side of the elevator cage is kept clear from the rack guides by…
