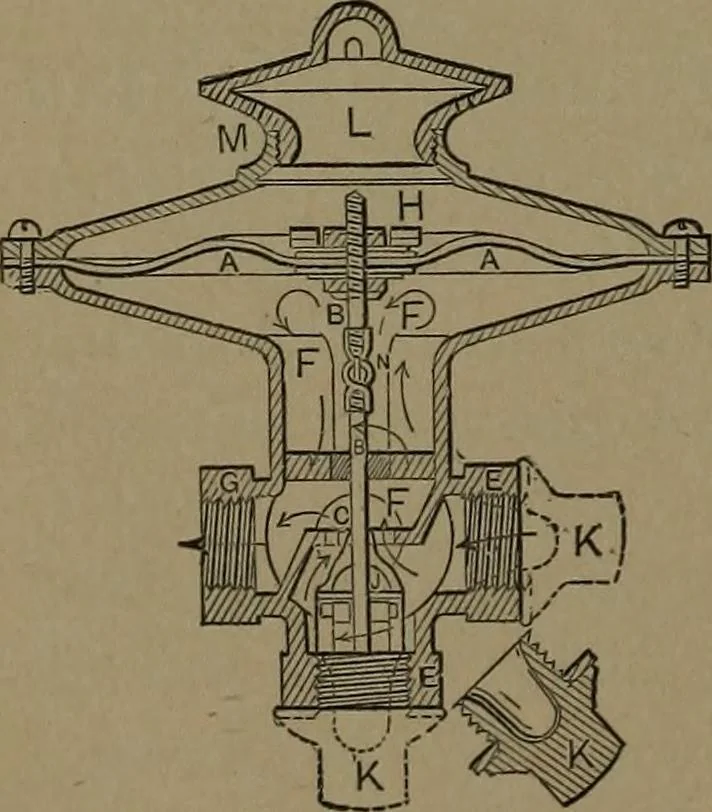

1623. GAS PRESSURE REGULATOR. —An elastic diaphragm is fastened betweendished discs and connected to a conicalvalve disc by a light adjustable spindle.The pressure for the burners is regulated byring weights at H, and the proper positionof the valve by the nuts on the long screwat the top of the…
