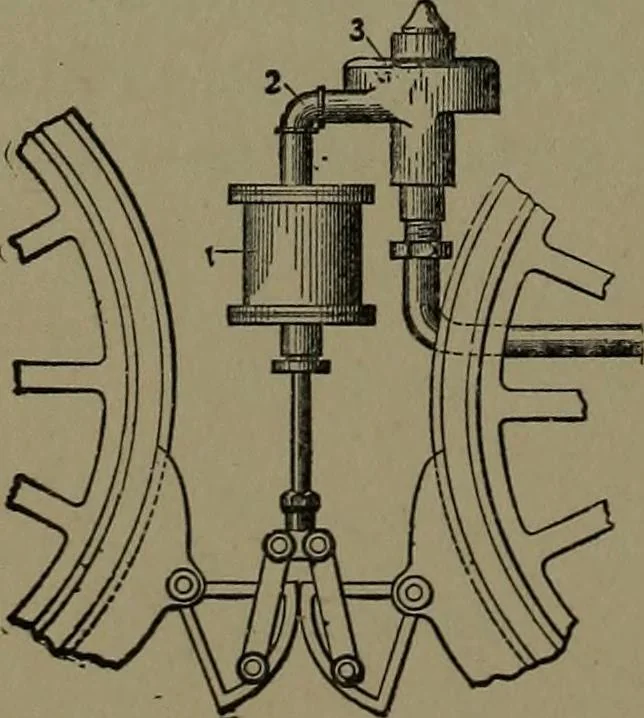

664. LOCOMOTIVE AIR BRAKE.—i. Air cylinder; 3, reducing valve. The pistonis directly connected by links to the cam see*tors, which press the brake shoes. AIR POWER APPLIANCES. 179 665. PNEUMATIC CAR SEAT CLEANER.— Compressed air is ejectedagainst the point of theinverted cone, which in-duces a…
