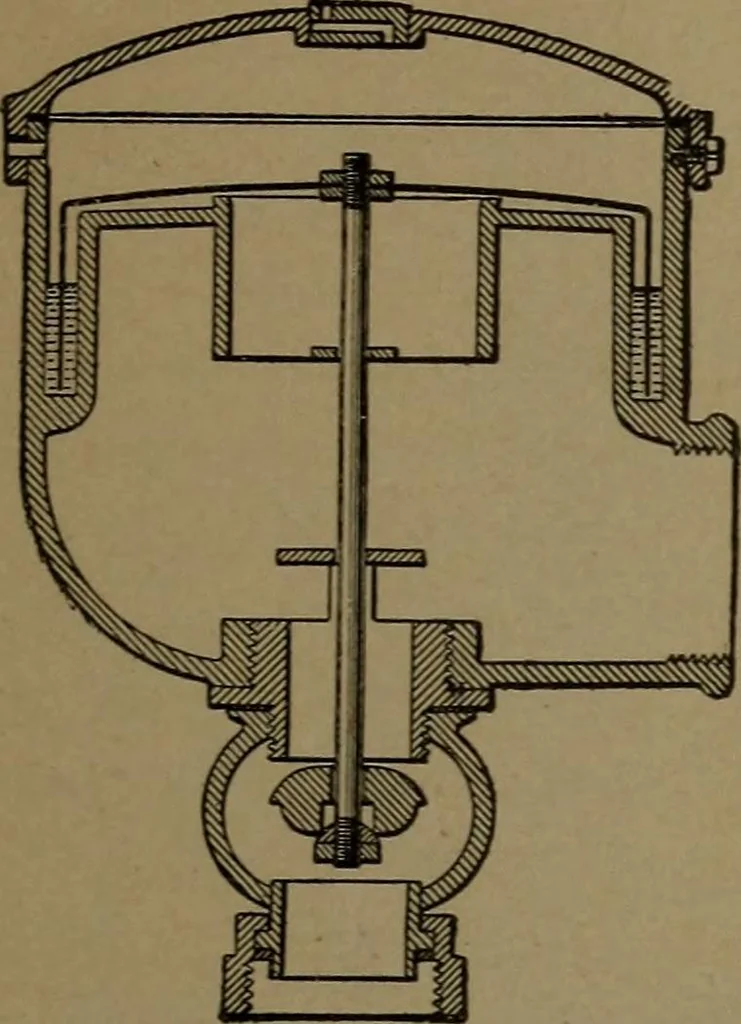

1623. GAS PRESSURE REGULATOR. —An elastic diaphragm is fastened betweendished discs and connected to a conicalvalve disc by a light adjustable spindle.The pressure for the burners is regulated byring weights at H, and the proper positionof the valve by the nuts on the long screwat the top of the… … 1624. GAS PRESSURE REGU-LATOR.—The gas flows in at the bot-tom and out at the side. The invertedfloat or basin is sealed in an annularcavity by mercur} and free to rise underexcessive pressure and partially to closethe valve in the inlet.
