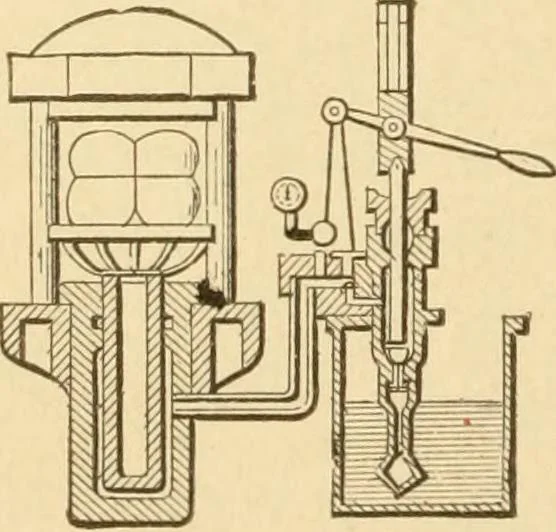

63. PUMP WATER PRESSUREREGULATING VALVE.—A balancedpiston valve, with a differential balance byspring or lever and weight, is placed onthe steam pipe to a pump. The openingbeneath the lower piston is connected tothe water discharge pipe of the pump.Over-pressure raises the disc and shuts offsteam.… … 565. HYDROSTATIC PRESS.—There aremany modifications of this principle for pressesand elevator lifts. The gross pressure of theram is as the areas of the ram and pump pistonsmultiplied by the pounds pressure on the pumppiston. HYDRAULIC POWER AND DEVICES. 153
