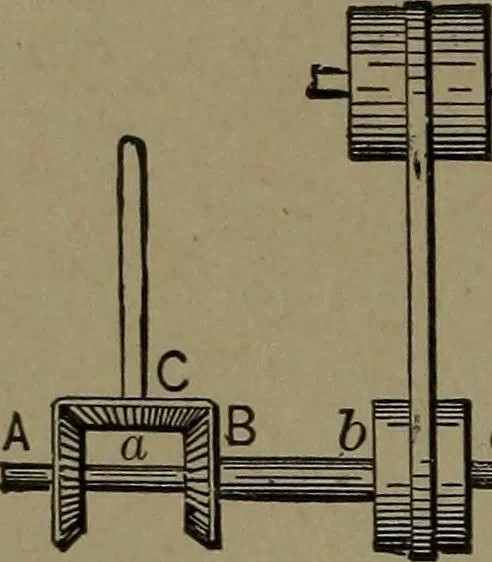

36 TRANSMISSION OF POWER. … 95. STOP, DRIVING, AND REVERSING^~^ MOTION with a single belt, which may be oper-ated either way : from the drum on a driving shaft,or from the bevel gear on shaft C. The middlepulley being loose on shaft a, the right-handg pulley tight on shaft a, left-hand pulley tight onthe hollow shaft B, b.…
