Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 47

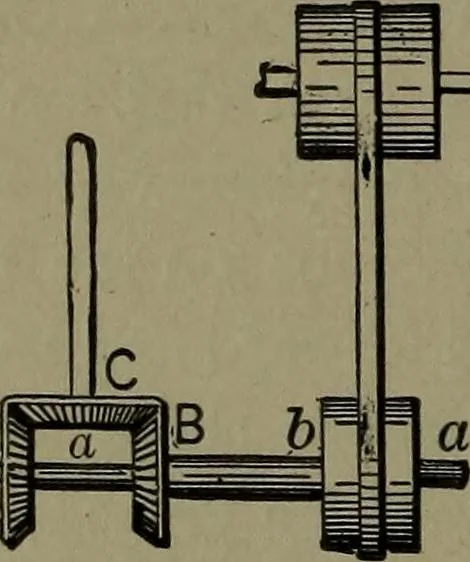

36 TRANSMISSION OF POWER. … 95. STOP, DRIVING, AND REVERSINGMOTION with a single belt, which may be oper-ated either way : from the drum on a driving shaft,or from the bevel gear on shaft C. The middlepulley being loose on shaft a^ the right-handpulley tight on shaft «, left-hand pulley tight onthe hollow shaft B, b. The…
Mechanical movements
