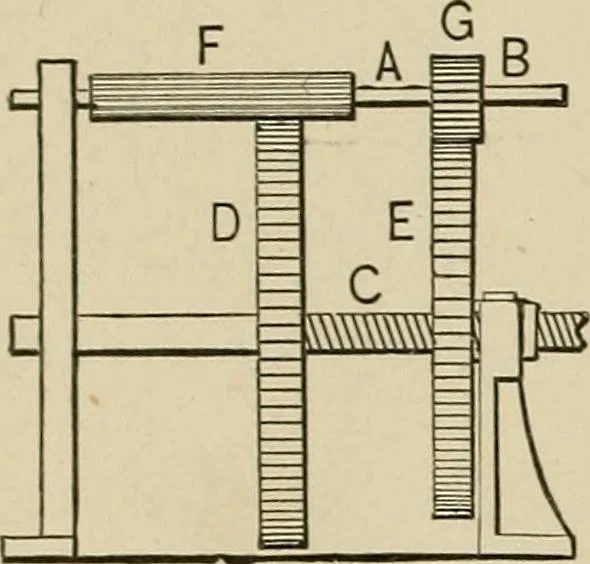

922. DIFFERENTIAL SCREW ANDGEAR MOVEMENT.—The spur gear E isfixed to a screw hub or nut, revolving in thehead of the short standard. The pinions Fand G vary in size to match the spur gears Dand E. The revolution of the pinions and shaftA, B produces a differential motion in thespur gears E and D. D…
