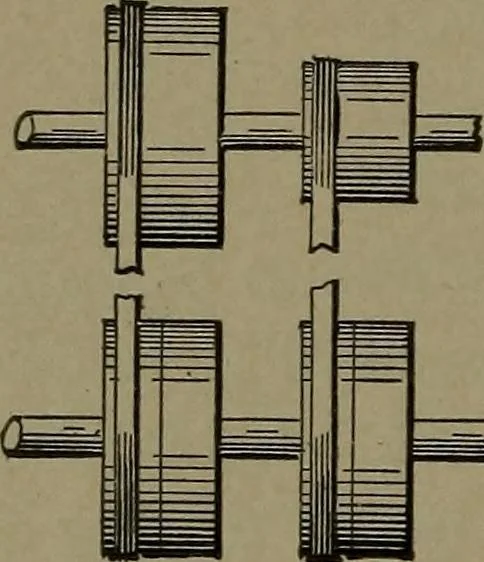

95. STOP, DRIVING, AND REVERSING^~^ MOTION with a single belt, which may be oper-ated either way : from the drum on a driving shaft,or from the bevel gear on shaft C. The middlepulley being loose on shaft a, the right-handg pulley tight on shaft a, left-hand pulley tight onthe hollow shaft B, b.… … 96. TWO SPEED PULLEYS AND BELTS. —Two pair of tight and loose pulleys on lowershaft, unequal broad tight pulleys on upper shaft.By crossing the belt from one of the pair a quickreturn speed may be obtained. Much used on^ tapping-machines and planers.
Mechanical movements
