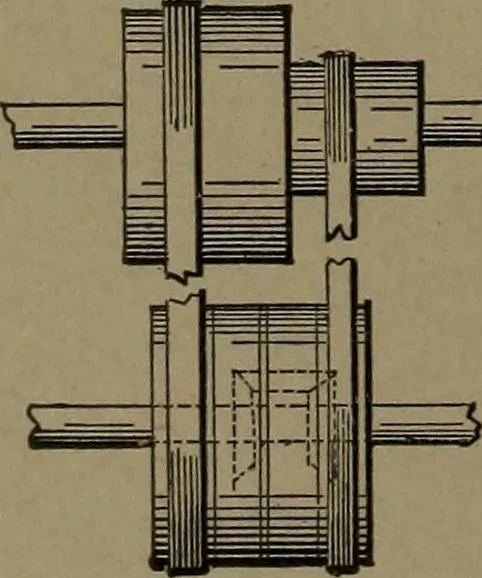

97. PULLEYS, COMBINED WITH A DIF-FERENTIAL GEAR for two speeds, and stop-beltshown on loose pulley. Middle pulley on lowershaft is fast to shaft, and has a bevel gear fast to itshub. Pulley on the right is loose on shaft and car-ries, transversely, another bevel gear. A third bevelgear runs loose… … 98. TRANSMISSION OF TWO SPEEDSfrom a driving shaft, one a variable speed. Thesame arrangement as No. 97, with the addition ofa driving pulley of different size, and a drivenpulley attached to the friction gear on the lowershaft. The right-hand belt shifts to the nextpulley and may be straight or…
