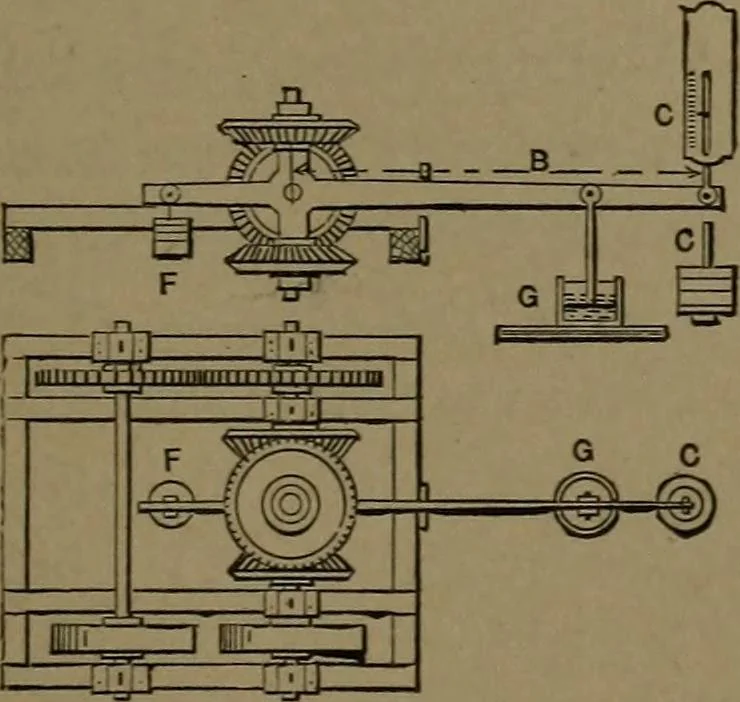

—Diameter of piilley in feetX 3-i4i6 X revomtions per minute =speed of periphery of pulley per minute. The lever is of the third order. Itslength from centre of shaft to the eye holding the weight, divided by the radiusof the pulley, all in feet, or decimals of a foot = the leverage. Then the… … 140. WEBBER DYNAMOMETER. —A lever with cross arm on which twobevel gears are pinioned at right angles withthe bevel gear of the driving-shaft. Thepinions on the lever transmit the powerwhich is weighed by the resistance of thelever at the spring balance. The H. P. indicated is: B X 6.2832 X R X W „…
