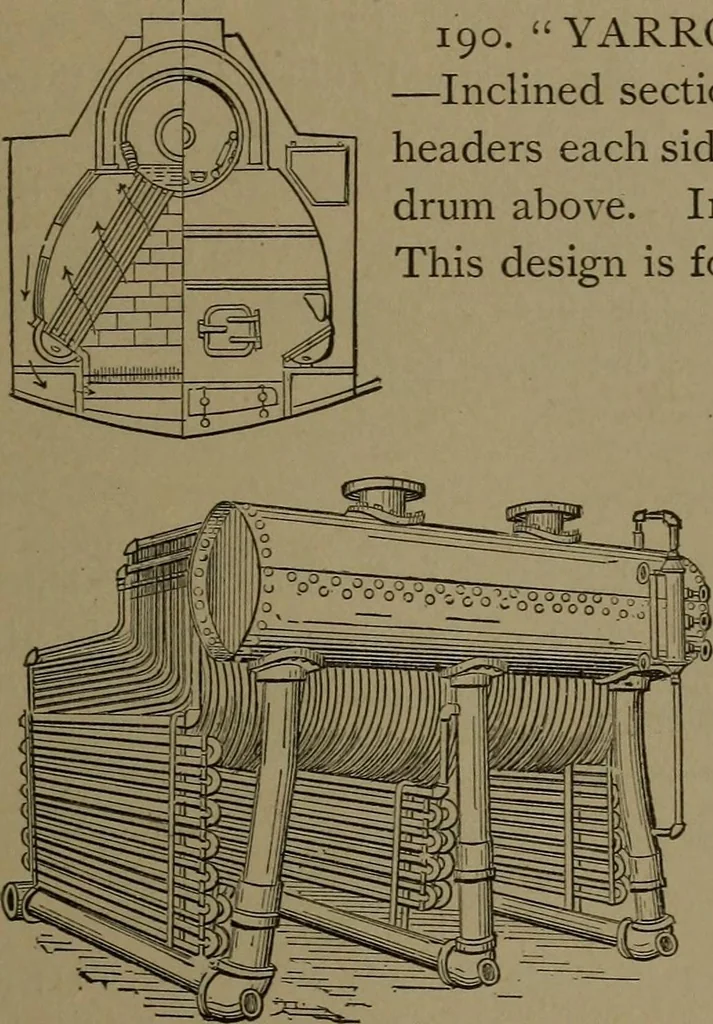

189. SEE WATER TUBE BOILER.— A series of short straight tubes connecting a hori-zontal steam drum with a rectangular water baseon each side of the furnace. Return tube at backof boiler. STEAM POWER. 61 … 190. YARROW WATER TUBE BOILER.—Inclined sections of straight tubes from water-headers each side of the fire grate to a large steamdrmn above. Iron casing lined with fire tile.This design is for a marine boiler. 191. BOYERS WATERTUBE BOILER. —Furnacewalls are coils of pipe. Coilsover the fire are…
