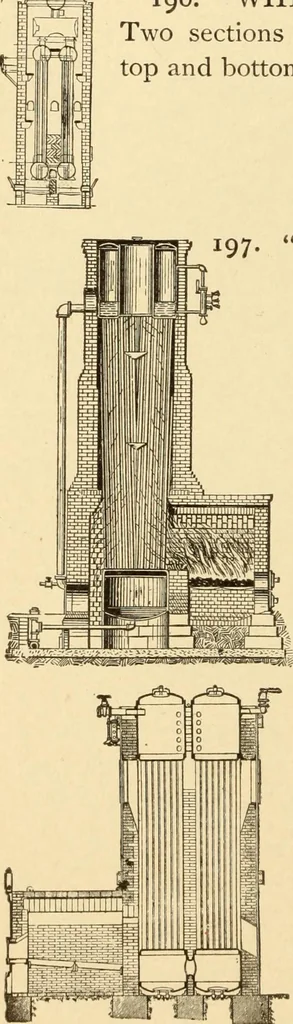

MOVES WATER TUBE BOILER.— The inclined tubes are in threegroups, set in three steam drumsabove and three water-heads be-low. Partitions divide the groupsof tubes to deflect the flame overthe whole surface. 196. WHEELER VERTICAL TUBE BOILER.— Two sections of straight vertical tubes, with… … CAHALL VERTICAL WATER TUBEBOILER.—A water drum at the bottomforms the lower head for the tubes. An an-nular drum at the top forms the upper head,through which the smoke passes. The fur-nace and combustion chamber are outside, asis also the circulating pipe, as shown in thecut. 198. VERTICAL W^ATER…
